Features

• AX103S ED apochromat with triplet ED objective
• Fully coated triplet ED objective
• Optimized for full-frame photography
• Build-in field flattener lens for sharp images
• Very high sharpness and contrast

Description

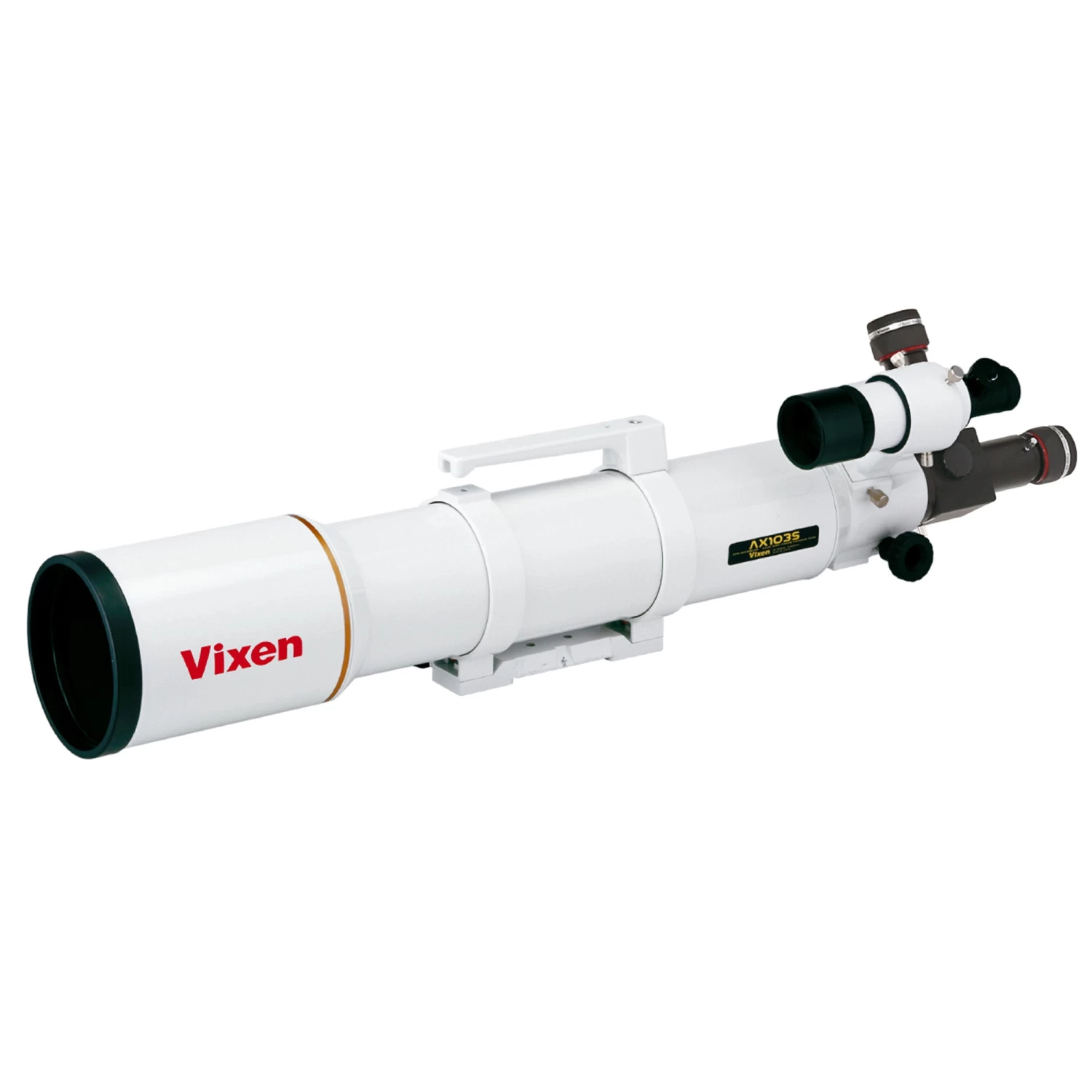

The AX103S is a top-of-the-range ED apochromat in the refractor series. It features a triplet ED object lens and a rear-mounted field-flattener lens. The f8.0 refractor contains a central ED lens in the objective and reduces chromatic aberration to an absolute minimum.

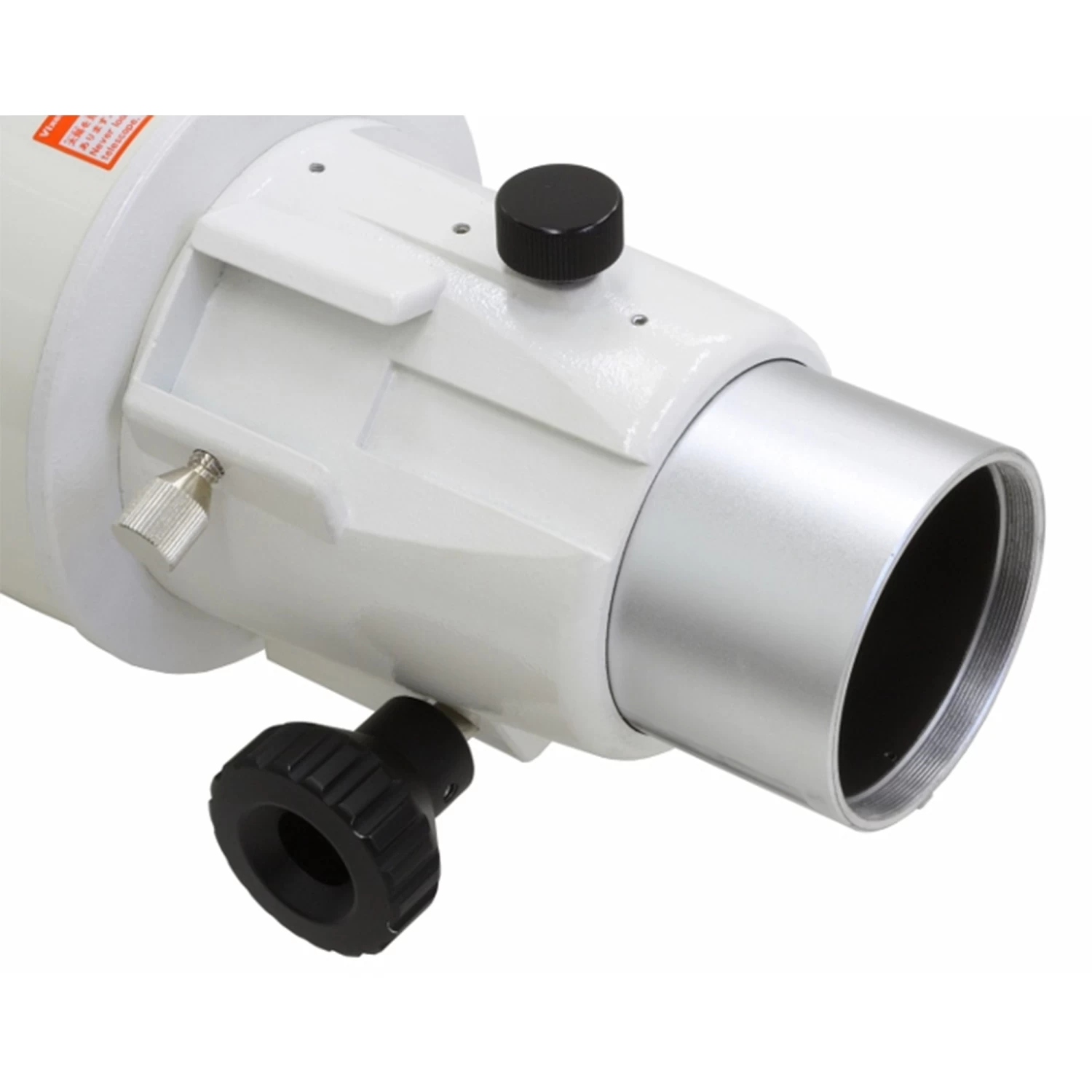

An optional focal reducer can reduce the aperture ratio to 1:5.6 in order to provide quicker results for astrophotographers. The built-in field flattener lens provides a sharp image across the entire field of view – an essential requirement in astrophotography. The 60 mm ring on the focuser allows you to attach a 2’’ eyepiece and a camera adapter.

The AX103S is specially designed for photography, but also offers stunning visual performance, especially for observing the moon and the planets. The AX 103S is corrected for full-frame photography and provides razor-sharp pictures right into the corners of the image field.

This telescope is guaranteed to provide a lifetime of outstanding performance!

What’s Included

• Telescope
• Tube clamps and carry handle
• Illuminated 7×50 viewfinder telescope
• Folding mirror

Specs

Optical design	Apochomatic Refractor
Mirror/Lens diam.	103 mm
Focal length and Aperture ratio	825 mm f/8.0
ED Glass	Yes
Angular resolution	1.13 arc seconds
Type of coating	Fully multi-coated
Color of coating	Green
Visual limiting magnitude	11.8 (approx., mag)
Material OTA	Aluminum
Light-gathering power	217x
Finderscope	7x50mm
Dimensions	687mm x 115mm
Weight	4.6 kg

Warranty

Vixen warranties its products to be free from initial defects in materials and workmanship for a specified period based on part type:

Vixen Electronic Parts: Limited One Year Warranty

Vixen Mechanical Parts: Limited Two Year Warranty

Click Here to read more

Manual

To download printable PDF manual

Click Here
